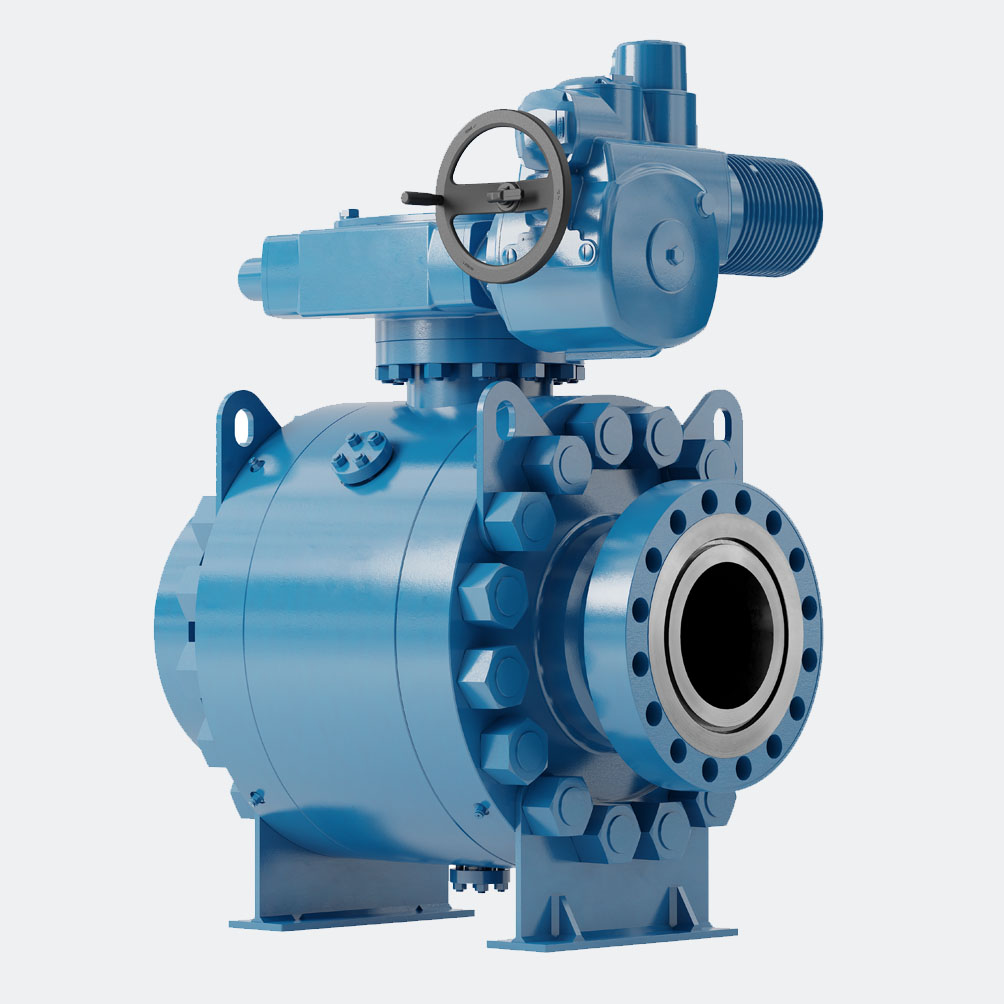

Side Entry Trunnion Mounted Ball Valves
NPS 2"-48" Class 150-2500
The innovative technology driven two and three piece cast and forged trunnion mounted designs comply to the most rigorous manufacturing and engineering standards which deal with the industry’s toughest applications. All split body designs offer tight shut-off for both gas and liquid service.
Design API 6D and API 6A ASME B16.34
Characteristics
Design Features: • Pin or Plate trunnion; • Full bore or Reduced bore; • Anti-blowout stem; • Double block and bleed; • Self-relieving; • Antistatic device
Size range: 2” to 48”
Pressure Class: ANSI 150, 300, 600, 900, 1500, 2500, API 6A up to 10000 psi
Temperature range: -196 °C to +400 °C
Certifications: Fire tested to API 6FA, API 607
Seat design: • Metal to Metal (TCC or CCC); • Soft seal; • Single and double piston effect
Materials: ASTM, UNS, AISI, NACE MR-01-03
CRA weld overlays are available. Аll materials conform to NACE MR-01-75 upon requirement.
CRA weld overlays are available. Аll materials conform to NACE MR-01-75 upon requirement.
Connections: Flanged RF, RTJ, butt-weld, mechanical
