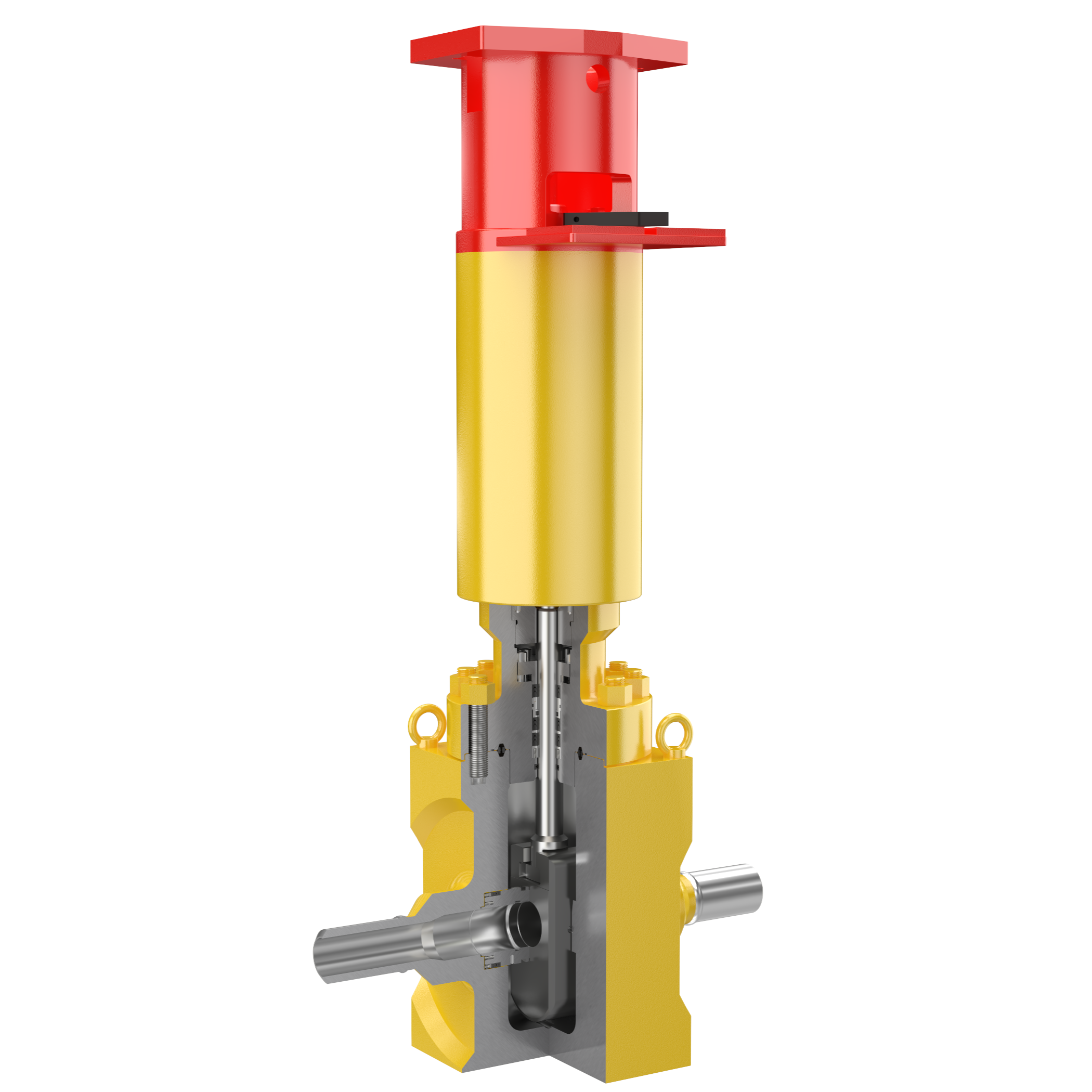

Subsea Slab Gate Valves
Design API 6DSS NPS 2"-30" Class 150-2500
Valves for offshore subsea applications in the Oil & Gas exploration, production and transmission, suitable for water depths to 1000 m. Applications: Subsea Pipeline, Riser, Pipeline End Manifold (PLEM), Pipeline End Termination (PLET), HIPPS
Design API 6A/API 17D NPS 1-13/16"-9" 3000 psi - 10000 psi
Characteristics
Design Features: • Forged body; • Special chevron type sealing; • Exotic materials.
Seat design: Metal-to-Metal Seats.
Materials: • Stainless steel; • Duplex and Super duplex stainless steel; • Nickel Alloys.
Operators: • Manual operated; • ROV interface; • Actuated with ROV override (if requested).
Size range: 1-13/16" to 9"; 2" to 30"
Other sizes available on request (project specific design)
Other sizes available on request (project specific design)
Pressure Class: 3000 psi to 10000 psi; class 150 to 1200
Water depth: up to 1000 meters (greater depth upon project requirement).
Certifications: API 6DSS, API 6A / API 17D, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, and specific Customer specifications. Water depth: up to 1000 meters (greater depth upon project requirement).
Materials: • Stainless steel; • Duplex and Super duplex stainless steel; • Nickel Alloys.
Connections: • Flanges; • Buttweld ends.
